Where is your vise mounted?


Everything Mac

Recommended Posts

This is the mount I modified for school. It works nice. It originally held a basketball hoop that fell and smashed the ring flat. I saw it in the school's junk pile and knew just how to use it. It does not work real well for much leverage as it does spin. But for what the kids do with it, it works great.



Link to comment
Share on other sites

  • Replies 67
  • Created
  • Last Reply

Top Posters In This Topic

My main post vise is mounted to an ash beam that goes 3 feet into the ground, It is set in a working triangle of the three pieces of equipment with about equal distance to forge, anvil and vise. If you are using the vise for hammering as in upsetting or forging animal heads, etc., it is important that it has a solid mount. If you hammer on your vise, or what's in it, and it moves or shakes then you are putting energy into the vise and not as much into your work. Same is true of your anvil. A solid mount will save you time and energy.

Link to comment
Share on other sites

My post vise is solid mounted to an ash beam that goes three feet into the ground. The shop is arranged in the working triangle of forge, anvil and vise, so it is most convenient and fewest steps to each. A heat and time saver. If you hammer on a piece of metal in the vise and the vise moves or shakes then you are putting energy into doing that instead of moving hot metal. Having the vise solid mounted will save you energy as you will get more work done with that setup. It's like the difference on how much you get done hammering hot metal on a 400 pound anvil compared to a 75 pound anvil. Even with the anvil post, unless it's a real big anvil, you will get more work done on an anvil with a solid post in the ground compared to one that's movable.

post-1310-0-68765900-1366426754_thumb.jp

Link to comment
Share on other sites

I have 3 five inch and one 8 inch post vises all mounted on square steel tubing 4 feet in the ground in concrete.

Getting ready to mount another 7 inch one in the ground so only about 27 inches high to use as a striking vise.

Willtake a cut wheel and cut a  V  in each jaw to form a square to hold hardy tools etc

Link to comment
Share on other sites

my first post did not have the pic withit so i will try again.
post-12147-0-05213300-1366469047_thumb.j the vises are mounted on a 30 gal. barrel filled
with concrete. in between the vises is a 2" receiver hitch that i have a lot of tools mounted to.
different bending jigs, swage block, etc. that way i can keep them in a rack in the corner and not taking up
floor space. the barrel is pinned to the floor with 5/8 pins. that way i can pull the pins and move the vises and barrel out of the way. it is not to bad to move. the pins hold exceptionally well.

the pic is there somewhere, i get some sql error so i don't know.

Link to comment
Share on other sites

  • 2 weeks later...

I had to add some bits to the bottom to secure the vice even better






You can notice that the bottom plate sits over a bit of rebar that is stuck into the concrete to avoid the stand to move and at the same time to allow the stand to be easily removed.

Link to comment
Share on other sites

  • 3 years later...
13 minutes ago, yves said:

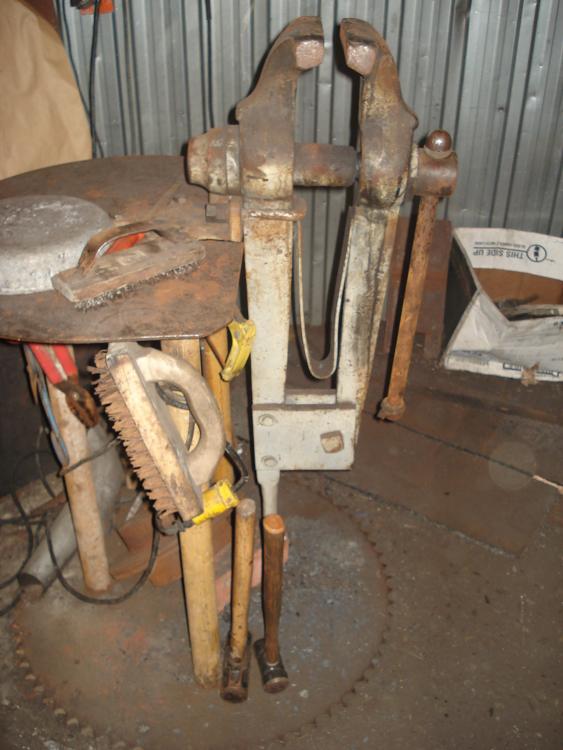

My work space is minimal. I work in a silo. I have this 6 inch vise bolted to the floor (concrete). I have  a few more vises. One will be mounted so that I can move it outside when the weather permits.


Is that stand for training against barefoot smithing?

Link to comment
Share on other sites

C1,

This a gear from an old steam shovel. The teeth are really worn down. So, would you come around our parts, you could forge bare footed. The dangers would be from above. You would thus need steel toes but no sole on the shoe. The teeth are forgiving …

Link to comment
Share on other sites

An old gentleman, and I am myself pretty much up there (he's worst than I am …), had worked on the machine. When it expired, a piece went there, another here. He had that gear and when he helped me get started in the forge, he came up with it from his junk piles. His "piles" are in a building all sorted out on two storeys. A beauty to behold. Whenever I need help, I go to him. It always works out. That man could have become a very creative engineer had he been born in a time and in a place where formal education would have been possible for him.

Link to comment
Share on other sites

I have the post vise mounted on the edge of the workbench (which is quite heavy) close to the forge and the main anvilso I only have to turn between the three. My machinist's vise sits at the end of the workbench. I have never felt any need to move the vise around.

Link to comment
Share on other sites

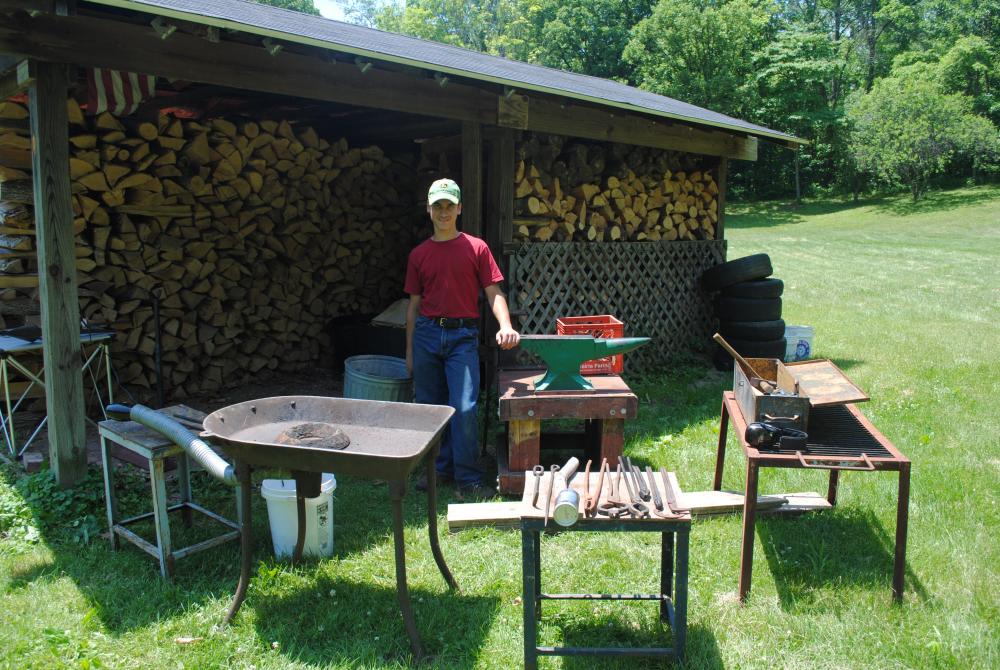

Mine, which was modified by welding some big square tube onto the mounting bracket, is mounted on the table the anvil is on.  That's not how I set it up, that's how I got it, but I haven't had any problems with it getting in the way of using the anvil.  Some time I'll get around to taking pictures and posting them. In the picture you can see the table (before I mounted the vise, this was before I actually started, so I now have a different setup). The vise goes on the far end, opposite the anvil, and would face toward the left if it was mounted.


Link to comment
Share on other sites

On ‎19‎/‎04‎/‎2013 at 11:27 PM, wd&mlteach said:
On ‎19‎/‎04‎/‎2013 at 11:27 PM, wd&mlteach said:

This is the mount I modified for school. It works nice. It originally held a basketball hoop that fell and smashed the ring flat. I saw it in the school's junk pile and knew just how to use it. It does not work real well for much leverage as it does spin. But for what the kids do with it, it works great.





This is the mount I modified for school. It works nice. It originally held a basketball hoop that fell and smashed the ring flat. I saw it in the school's junk pile and knew just how to use it. It does not work real well for much leverage as it does spin. But for what the kids do with it, it works great.

Mine is in bits at the moment having a long soak in vinegar. Its only a baby with 3" jaws.will be getting a bigger one too) I haven't fitted yet and I've looked on file here at various ways of doing it also on google. I have a  6" concrete floor to work with and I have this plate I would like to use as a base. Its 23" dia. 1/2" thick mild steel and weighs 24.5kgs. and am thinking of welding a suitable 4 or 5" square tube to the base and fix the vise to that and perhaps fix the bottom of the leg through the plate too. Are there any issues with doing it this way please? thanks.

Tom.

On ‎19‎/‎04‎/‎2013 at 11:27 PM, wd&mlteach said:






Link to comment
Share on other sites

Sorry, I feel like I have mixed up the previous post to mine about a post vise base; with the one from another member about basketball hoops. My post and request is not part of that and it starts at the words, "Mine is in bits at the moment having a long soak in vinegar...."

The best one I have seen so far that might fit my bill is on faq's on anvilfire under 'V'-its a red steel circular base with a circular steel pole welded to it.



thanks



Tom.

Link to comment
Share on other sites

22 hours ago, Tommytaptap said:

I have a  6" concrete floor to work with and I have this plate I would like to use as a base. Its 23" dia. 1/2" thick mild steel and weighs 24.5kgs. and am thinking of welding a suitable 4 or 5" square tube to the base and fix the vise to that and perhaps fix the bottom of the leg through the plate too. Are there any issues with doing it this way please?

In my opinion its better to have a piece with a hole welded to the base that receives the leg.

If you drill a hole and put it inside it will in the best case wedge itself in the hole, worst case sit hollow above the ground or destroy what is under the plate.

Just bend a collar around the leg, put everything together and then weld the collar to the base plate.

Link to comment
